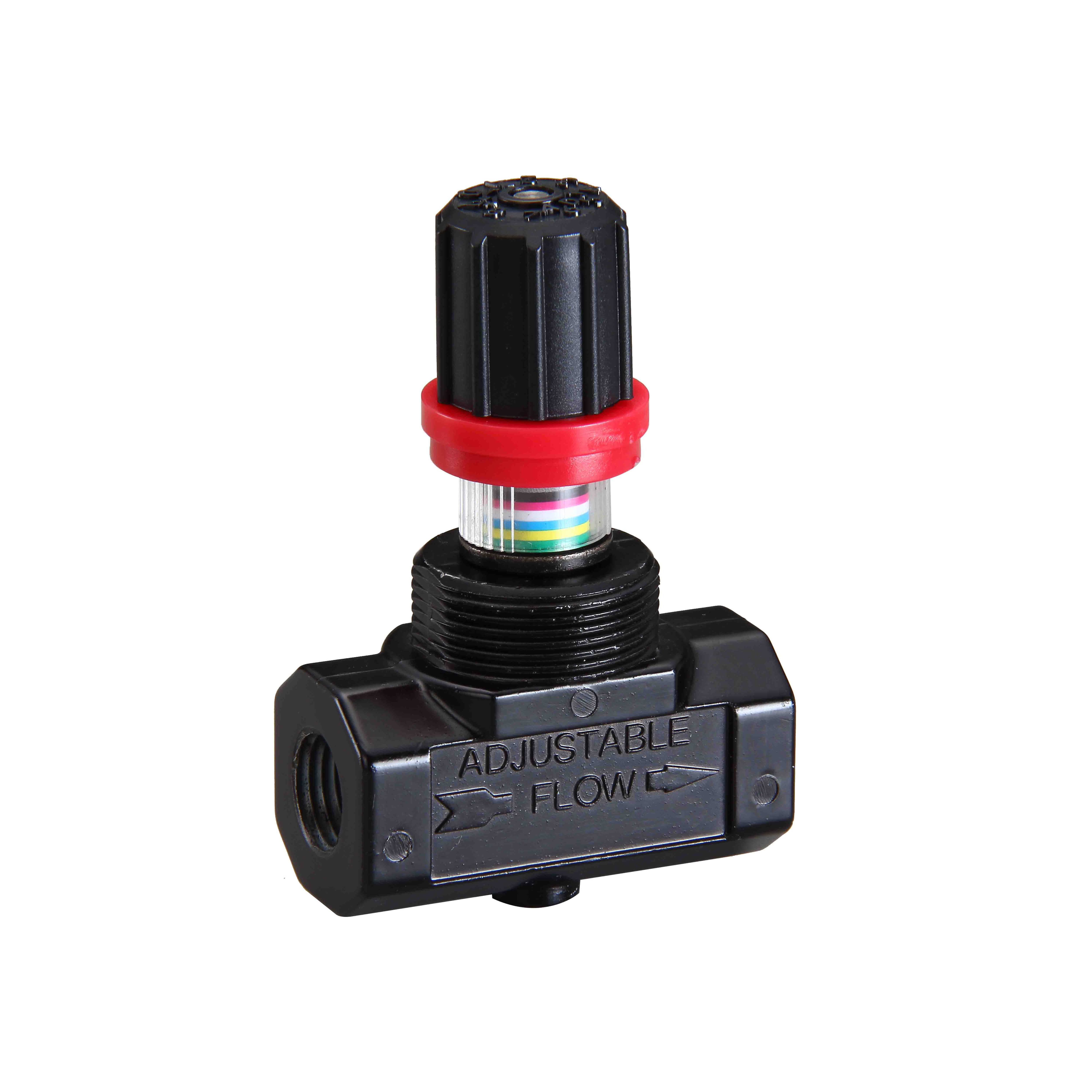

PRODUCT# P-17

CAN BE VIEWED IN ALL DIRECTIONS (PATENTED)
COLOR BAND WELL SEALED (PATENTED)
ZINC-ALLOY BODY VALVE PROVIDES FREE FLOW IN 1 DIRECTION, CONTROLLED FLOW IN THE OPPOSITE DIRECTION.
WITH COLOR-CODED MICROMETER AND CALIBRATED ADJUSTMENT KNOB.
THE RING LOCK KEEPS ADJUSTING FROM ACCIDENTALLY MOVING.
OPERATING TEMP. RANGE: 0° TO 200 °F
MAX. PRESSURE RATE: 250 PSI
MAX. CFM VALUES:28
VALUE INLET PART: 1/4" NPT
VALUE OUTLET PART: 1/4" NPT
MATERIAL: ZINC ALLOY
WEIGHT: 0.19 KG
